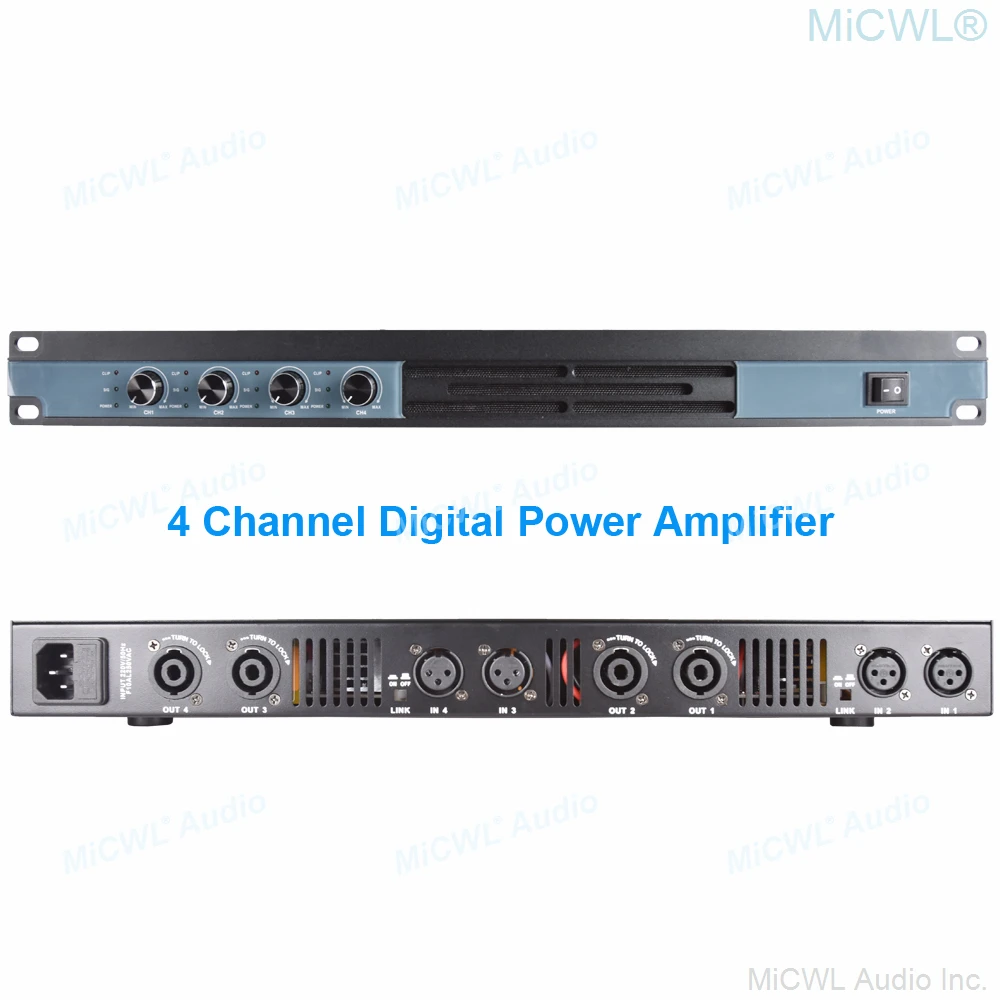

MiCWL Q650 Professional 5200 Watt Digital Power Amplifier Preamps

4 Channel 2600W Audio Power (8Ω 4x 650W)

4 Channel Power Amplifier: (5200W)

5200 Watts @ 4 Ohms ( 1300W + 1300W + 1300W + 1300W)

2600 Watts @ 8 Ohms RMS ( 650W + 650W + 650W + 650W )

19" 1U Professional Power Amplifier

ATR (Accelerated Transient Response) technology for ultimate punch and clarity

MSRP: $799.00

Brand New - Original Packaging

Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.

MICWL Q650 is a Professional 4 Channel Digital Power Amplifier that was developed using the expertise of professional sound engineers,

working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with the Q650 awesome performance,

flexibility and crystal clear sound quality.

4 Channel Power Amplifier: (5200W)

5200 Watts @ 4 Ohms RMS ( 1300W + 1300W + 1300W + 1300W)

2600 Watts @ 8 Ohms RMS ( 650W + 650W + 650W + 650W )

1. MiCWL Q650 Digital Power Amplifier and other Commercial prodcuts integrated solutions for large shopping malls, conference hassls, transportation hubs and so on.

2. Use the world's most advanced efficient switching power supply (SMPS) and Class D power amplifier (CLASS D) design.

3. Patented design of high quality porous heat sink, in harsh environments can be normal in low temperature operation

4. adopts the imported teflon wire, ensure the transformer can normally work efficeently at high temperature.

5. Built in Digital audio processor function.

6. With volume switch,Adjustable volume

7. Full set of protection functions to ensure that the product normally working

8. With Combined signal function,Multiple amplifiers can be connected in parallel to drive multiple speakers.

Technical Specification :

◆ Large capacity Digital Switching Power Amplifier

◆ Automatic limit output, short circuit, overload, over temperature, power-on delay and other protection functions

◆ The power amplifier is equipped with a delay start system to protect the speakers from impact and damage

◆ The rear panel is equipped with dual channels,

◆ Balanced input interface

◆ SPEAKON output connector

◆ 483MM standard frame structure

◆ The switching power supply of the power amplifier part has a separate cooling system

◆ The cooling fan is controlled by an advanced stepless variable speed circuit

◆ 1U design, light body, easy to carry and install

Output/Output (8Ω, 1kHz): 4x650W

Output/Output (4Ω, 1kHz): 4x1300W

Distortion: <0.005%

S/N ratio: 112dB (A-weighting)

Damping coefficient: >1000

Conversion rate: 50V/us

Frequency Response/Frequency Response: 20Hz~20kHz +/-0.25dB

Total Distortion/Total Distortion: 1% (8Ω, at 600W)

Input Sensitivity/Input Sensitivity: +3dB * (0.775V)

Input Impedance: 10kΩ (electronically balanced/Balanced)

DC residual: <5mV

Connect terminal Connector:

Input (CH1-2): XLR input connector; Output (CH1-2): SPEAKON output; Power: AC power Input (CH1-2): XLR Input Connector; Output (CH1-2): SPEAKON Output; Power: AC power supply.

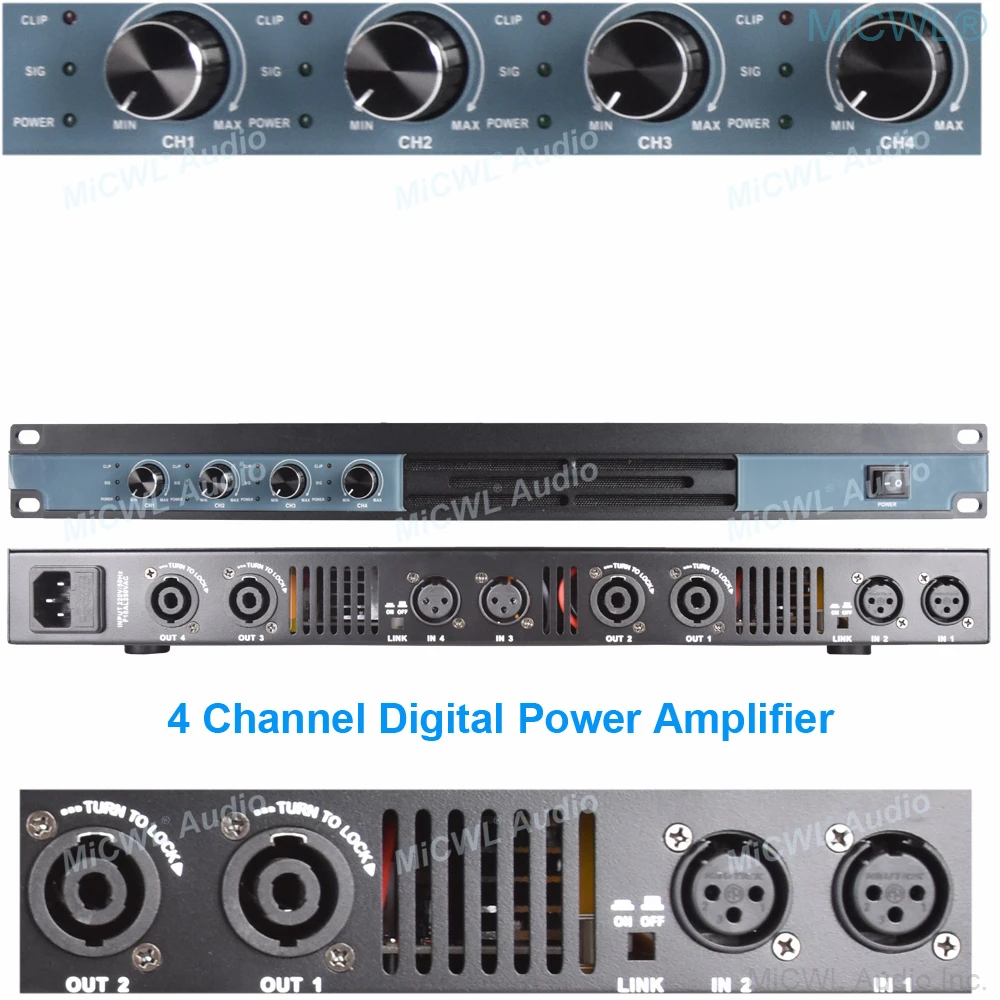

Indicator Lights:

Power indicator x 1 (green); input indicator x 2 (yellow); peak indicator x 2 (red); protection circuit action indicator x 1 (red) Power Indicator x 1 (Green), Input Indicator x 2 (Yellow ), Peak Indicator x 2(Red); Feedback Protect Indicator x 1(Red)

Power Supply Voltage:

AC220~240V, 50/60Hz / or AC110~120V, 50/60Hz (using internal jumper switch/Via inside jumping switch)

1/8 Rated Activity Consumed Power: 50W, 80W, 110W

Working Temperature Range: 0~50℃

Working Humidity Range:

Below 90%RH/Under 90% RH (But it can not be condensation)

Packing include:

1 X 4 Channel Digital Power Amplier

1 X Power Cable
