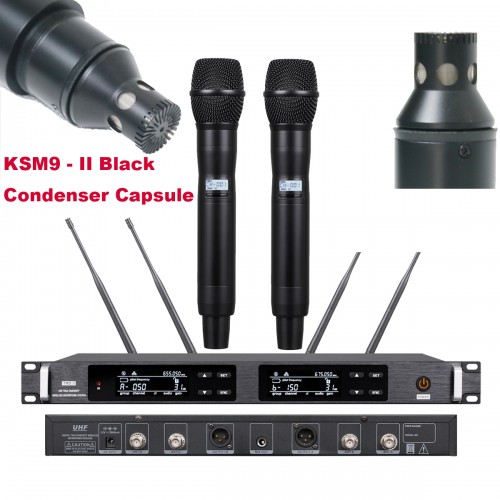

High-End UHF ULXD4 Wireelss Microphone System ULXD24 KSM9-II Condenser Handheld Stage Performance Karaoke
Click Image for Gallery
Welcome To Our Company Online Store -MiCWL Audio Inc.
Original Digital Wireless Microphones
Classic ULXD24 Two-Channel Digital Wireelss Receiver
ADX2 Handheld Transmitter 2 Beta87 / KSM9/ Condenser Capsule
and KSM8/ ksm9 / SKM9000 Dynamic
Wireless Microphones System
2 x Metal Handheld Microphones
Stage Performance Level 500m Range
MSRP: $1299.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
Features:
ULXD24 Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to
transparent digital audio.
The ULXD24 Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide
tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked
control and signal routing options bring a new level of management and flexibility to your entire workflow.
Work environment :
500m Large unimpeded plaza/vocal concert ,
Complex harsh environment 200m Range (Rainy days are included)
1. True diversity, 2 Channel wireless handheld microphones, short circuit protection function; infrared automatic frequency
matching, pilot frequency function Four antenna signal strengthened reception (multi-level high-frequency filter design has strong
anti-interference ability and no noise)
2.1U standard chassis, metal panel, LCD liquid crystal display display working status, simple function operation.
3. High-fidelity audio transmission circuit, anti-drop, anti-vibration microphone core matching, sound clarity and high vocal
reproduction.
4. Hand microphone power consumption: 110MA, using imported DC conversion boost circuit low power consumption and high efficiency,
effectively extending the battery life. Radiant power: 16mW, use distance up to 500 meters in open environment. Complex harsh
environment Rainy 200m Range.
5. Equipped with anti-switch impact function to ensure the protection of the output of the rear stage, and prevent the power
amplifier and speakers from being impacted and burned.
6. The hand microphone has a battery level display, and the receiver also has a battery level display, which is convenient for
remote monitoring of battery usage and working status at a glance.
ULXD4D Digital Receiver:
Frequency range: 640-690MHZ 2x 200 Channel
Maximum number of channels: 300
Bandwidth: 50MHz
Receiving sensitivity: -105dBm
S/N ratio: >70dB(A)
Distortion: <1% Audio output level: 8dBu max
External power supply: DC: 12-17V, 1A,
Oscillation mode: PLL phase locked loop
IF frequency: first IF: 110MHz, second IF: 10.7MHz
Antenna interface: TNC
Display mode: LCD
Sensitivity: -100dBm (40dB S/N)
Spurious suppression: >80dB
Audio output: unbalanced: +4dB (1.25V)/5KΩ
Balance: +10dB(1.5V)/600Ω
Supply voltage: DC12V Supply current: 450mA
ADX2 Many type Digital Handheld transmitter option:
Frequency range: 640-690MHZ, 2x200 Channel
Bandwidth: 50MHz
Harmonic suppression: >55dBc
Maximum frequency deviation: +_48KHz
Frequency response: 40Hz-16KHz (-3dB)
S/N ratio:>70dB(A) Distortion:<1%
Power requirements: 2 AA type 1.5V batteries)
1 x Dual Channel Digital Host
2 x Handheld microphone ( or BeltPack) many type option
1 x Audio transmission line
1 x power adapter
4 x telescopic antennas
1 x Operating instructions
