Microflx MXC800 8 Channel Stage Performance Large Conference Digital Wireless Microphone System 6 Table 1 Handheld 1 Headset
-73%
Click Image for Gallery

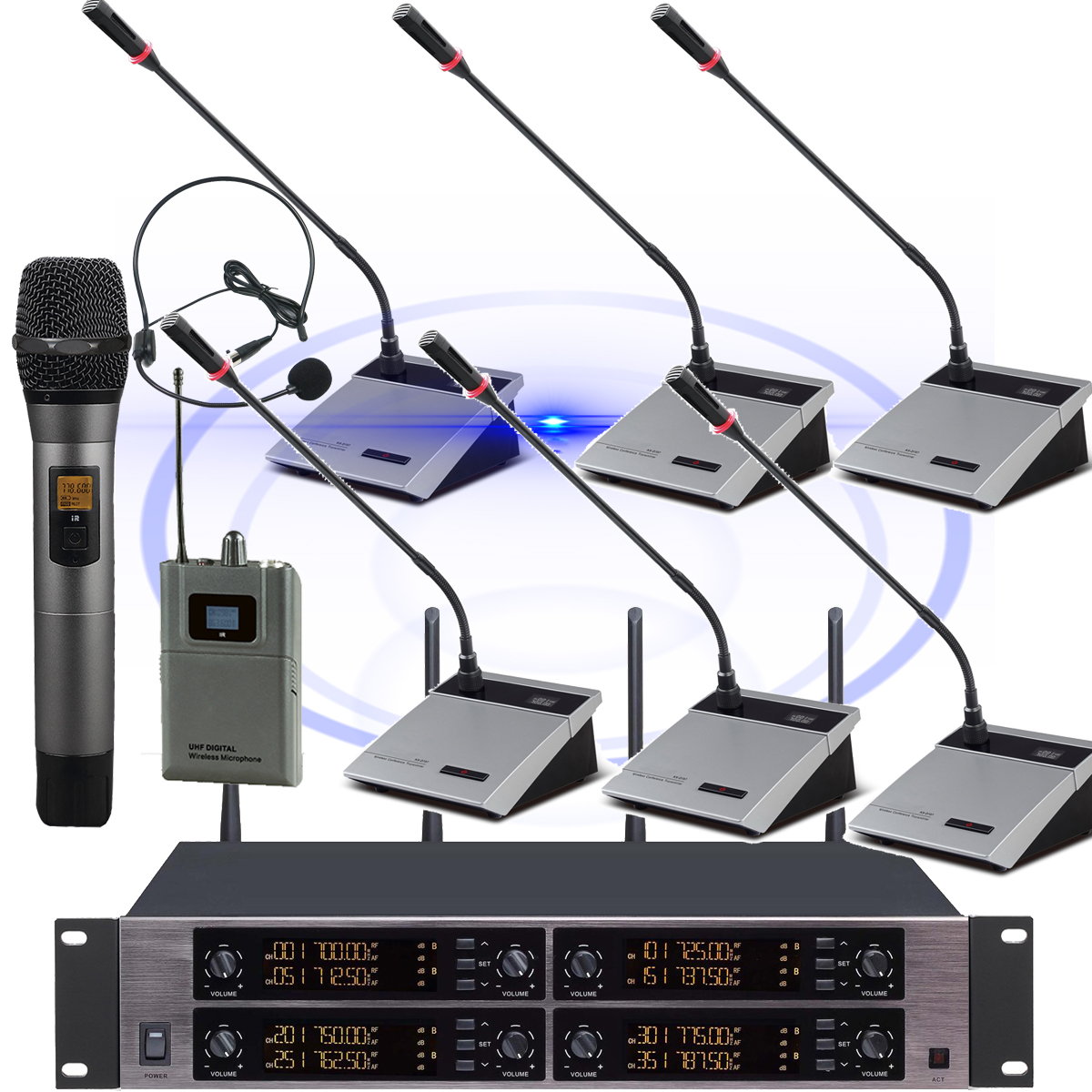

MXC880 Series Wireless Digital Conference Discussing Microphones
2 U 19" Rack Mountable Design Host
LED Table Unit
Convention Discussion Gooseneck
with 6 Destop + 1 Handheld + 1 Lavalier Microphone
- Desktop LED Display Screen
MSRP: $39999.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
MiCWL MXC880 Wireless System Description:
Oscillation Modes: PLL syntheized Frequency Oscillation Carrier Ferquency Range: UHF 600MHz to 900MHz Frequency Stability: ±0.001% Modulation Mode (Modulation Mode) : FM Signal to noise Ratio (S/N Ratio) : > 60dB Distortion degree (T.H.D) :< 0.5% @ 1 KHZ Sensitivity: 1.2/ Uv-@s /N=12dB Power Supply: DC:12V to 17V Audio Output: Free standing 0 ~ 400mV Mixed style 0 ~ 300mV
Handheld / or BeltPack / or Gooseneck Desotop :
Power Supply: DC 4.5V (1.5V AA*3) The microphone consumes an electricity quantity: 100mA Carry a frequency: UHF 500MHz ~ 900MHz Frequency stability: ±0.001% Maximum frequency deviation (Max.eviation Range) : ±30KH Signal to noise Ratio (S/N Ratio) : > 60dB Adjacent frequency interference Ratio (F/N Ratio) : > 80dB Dynamic range: ≥100dB capacitance (in effect) polar psttern: One direction Frequency Resonse: 40Hz ~ 20KHz Sensitivity: -43±3dB@1KHz
1. Signal transmission in UHF band, frequency range: 600MHz-900MHz;
2. Eight channels to receive signals, each channel has 50 channels to choose from, each channel at 250KHz step; 12.25MHz per
channel;
3. Using stable PLL digital phase-locked loop synthesis technology and intelligent digital circuit, the performance and stability
of the whole machine are significantly improved;
4. Each channel is equipped with unique ID number to enhance anti-interference function, supporting the use of 10 overlapping
machines (i.e. 10 receivers and 80 transmitters);
5. Built-in efficient noise suppression circuit, anti-noise function is remarkable;
6. Two rubber receiving antennas are set on the back of the receiver to enhance the received signal with decent appearance;
7. The back is equipped with 2 balanced output and 1 mixed non-balanced output, suitable for connecting a variety of external
equipment;
8. No longer limited to a single transmission can only be paired with a single channel, the same transmission can be interused in
400 channels of two channels, showing the humanized high-tech design;
10. Metal aluminum hand-held tube;
11. The power consumption of the microphone is 80mA, powered by 1.5V battery (2 capsules), which can be used continuously for 12
hours;
12. The host and transmitter are equipped with LCD screen to display the working state and other contents
13. Use distance: open environment: 80-100 meters complex environment: 50-80 meters
14. Suitable for meetings and speeches.
UHF Digital Receiver parameter :
2. Eight channels to receive signals, each channel has 50 channels to choose from, each channel at 250KHz step; 12.25MHz per
channel;
3. Using stable PLL digital phase-locked loop synthesis technology and intelligent digital circuit, the performance and stability
of the whole machine are significantly improved;
4. Each channel is equipped with unique ID number to enhance anti-interference function, supporting the use of 10 overlapping
machines (i.e. 10 receivers and 80 transmitters);
5. Built-in efficient noise suppression circuit, anti-noise function is remarkable;
6. Two rubber receiving antennas are set on the back of the receiver to enhance the received signal with decent appearance;
7. The back is equipped with 2 balanced output and 1 mixed non-balanced output, suitable for connecting a variety of external
equipment;
8. No longer limited to a single transmission can only be paired with a single channel, the same transmission can be interused in
400 channels of two channels, showing the humanized high-tech design;
10. Metal aluminum hand-held tube;
11. The power consumption of the microphone is 80mA, powered by 1.5V battery (2 capsules), which can be used continuously for 12
hours;
12. The host and transmitter are equipped with LCD screen to display the working state and other contents
13. Use distance: open environment: 80-100 meters complex environment: 50-80 meters
14. Suitable for meetings and speeches.
UHF Digital Receiver parameter :
Oscillation Modes: PLL syntheized Frequency Oscillation Carrier Ferquency Range: UHF 600MHz to 900MHz Frequency Stability: ±0.001% Modulation Mode (Modulation Mode) : FM Signal to noise Ratio (S/N Ratio) : > 60dB Distortion degree (T.H.D) :< 0.5% @ 1 KHZ Sensitivity: 1.2/ Uv-@s /N=12dB Power Supply: DC:12V to 17V Audio Output: Free standing 0 ~ 400mV Mixed style 0 ~ 300mV
Handheld / or BeltPack / or Gooseneck Desotop :
Power Supply: DC 4.5V (1.5V AA*3) The microphone consumes an electricity quantity: 100mA Carry a frequency: UHF 500MHz ~ 900MHz Frequency stability: ±0.001% Maximum frequency deviation (Max.eviation Range) : ±30KH Signal to noise Ratio (S/N Ratio) : > 60dB Adjacent frequency interference Ratio (F/N Ratio) : > 80dB Dynamic range: ≥100dB capacitance (in effect) polar psttern: One direction Frequency Resonse: 40Hz ~ 20KHz Sensitivity: -43±3dB@1KHz
(1) 1x MiCWL MXC880 Wireless Digital Conference Receiver
(2) 8 x Microphone Transmitters Unit ( 6 table+ 1 handheld + 1 beltpack)
(3) 1x AC-DC adapter (100V-250V universal )
(4) 4x Antenna
(5) 1x Audio Cable.
(6) 1x Manual.
(6) 1x Manual.
