MICWL ER10 Bluetooth Live Studio Audio Mixer Mixing Console 24DSP Built-in Effects 48V USB
-24%
Click Image for Gallery

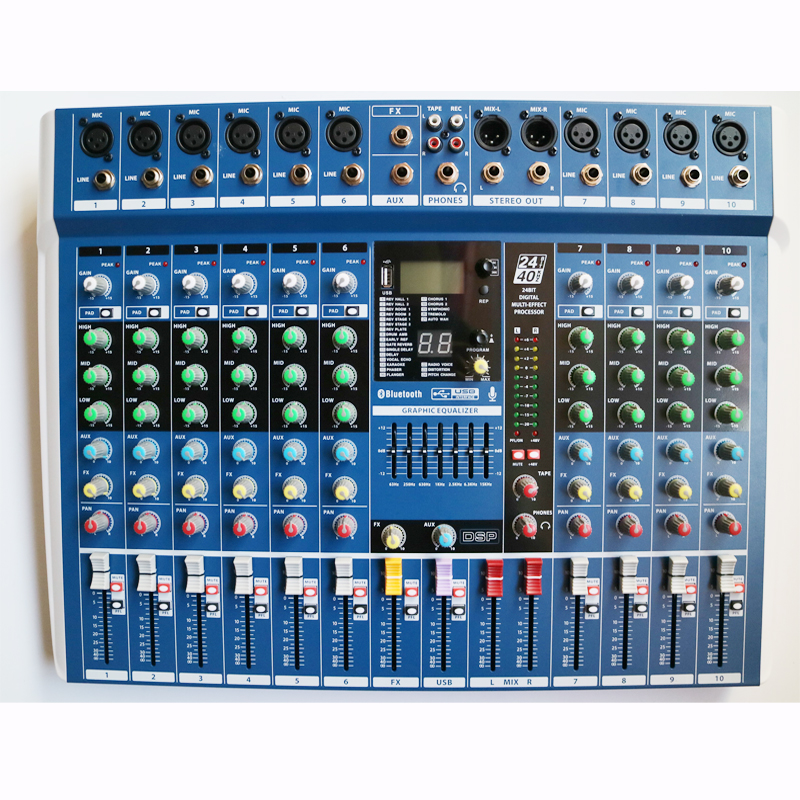

MICWL 10 Channel Professional Audio Mixer USB Bluetooth
Built-in 24-Bit Digital Effect Processor
Help you create the perfect mix in any live studio performance enviroment.
Features:
10-way signal / microphone mono inputs,

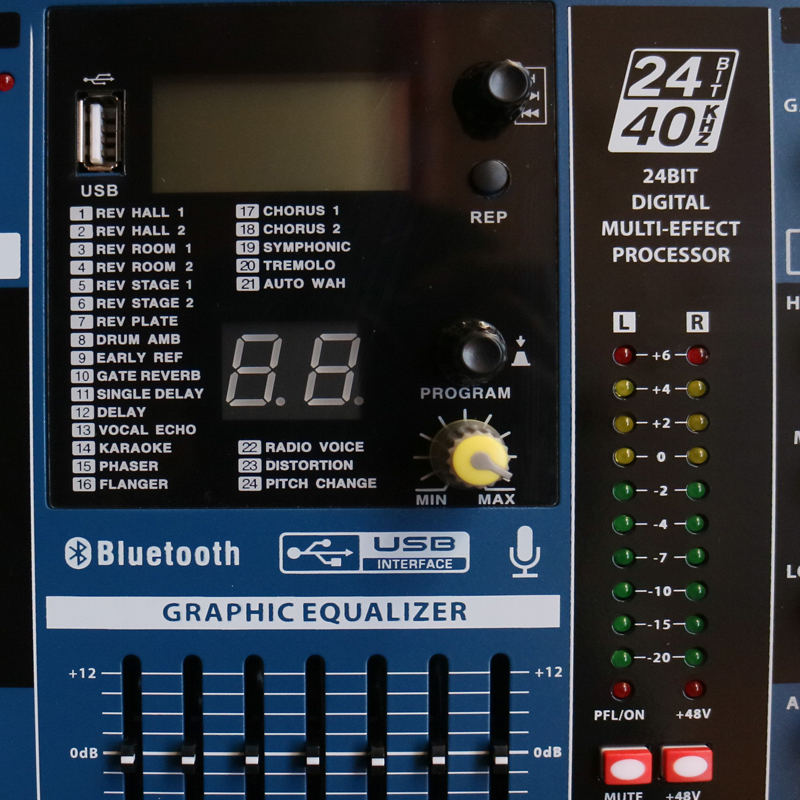

Built-in 24 kinds of LCD digital display, digital effects

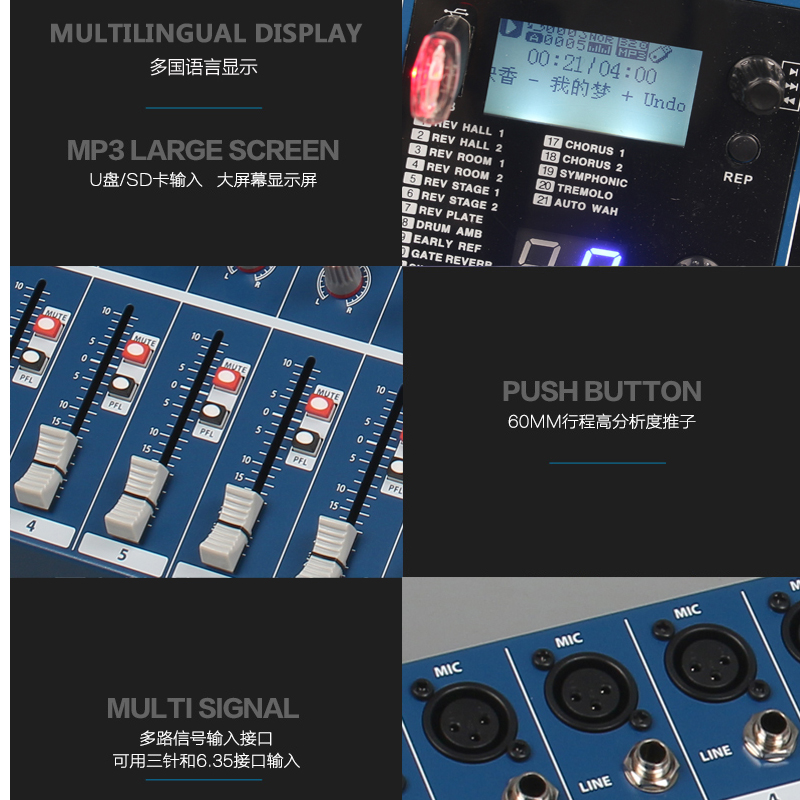

MP3 player with lyrics synchronized on LCD,record output

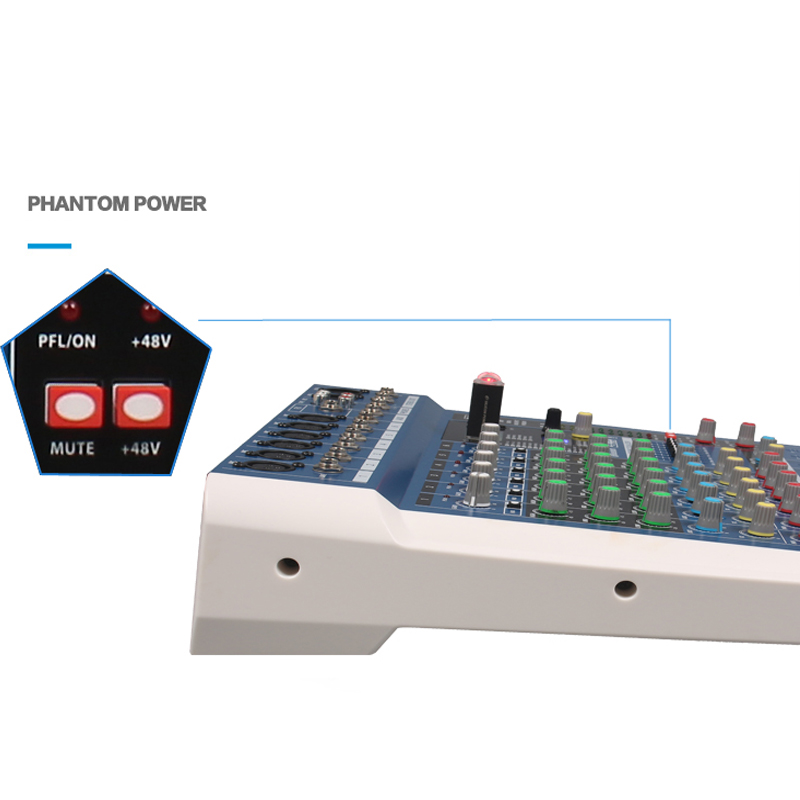

Built-in 48V phantom power for professional recording condenser microphone use
Built-in 3-Band equalizer
Two channels (L / R) audio output
All the way to send the output, one return input
A set of stereo mix output
Each has a monitor switch
All the way to high-fidelity headphone output power
Headphone monitoring function
Recording Function, connecting the Mixer with Mobile Phone / PAD (iPhone or/and Android) / Laptop on Bluetooth accessible.
Specifications:
Maxinmum Levels
Mic Input: 30dBu
Line Input: 21dBu
All other Input: 22dBu
Mixer Rated Output
Main outs: +4dBu
All other outs: +4dBu
Maximum output: 20dBu
Frequency Response
Mic Input to Main Output:
+0,-1dB,<20Hz to 40KHz
+0,-3dB,<20Hz to 60KHz
Connection Impedances
Mic Input:>1KΩ
Line Input: >10KΩ
Output: >100Ω
EQ(each band)±15dB
Mono Channel EQ
High: 12KHz
Hi Mid: 2.5KHz
Low Mid: 400Hz
Low:80Hz
Package:
1 x Mixer
1 x Adaptor and cable for Power Source (100V-240V can working)
1 x Manual Book
